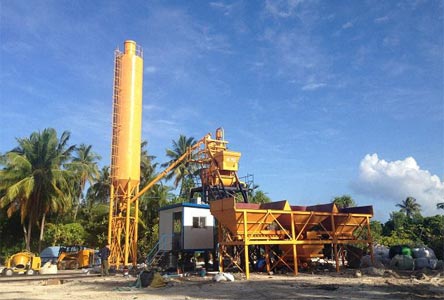

HZS 35 Concrete Batching Plant

The Description of HZS35 Concrete Batching Plant:

HZS35 concrete batching plant is one of the small-sized plant series of Haomei company. It is semi-automatic concrete mixing block composed by feeding, batching, mixing, electrical control and steel structure components, suitable for small-scale construction projects, precast yard and commercial concrete companies.

  • Stability and Durability: adapt and apply the most advanced technologies around the world;

  • Reliability: 20 years of experiences in manufacturing concrete batching plants;

  • Stationary modular structure, fast and easy installation

  • Sicoma mixer, excellent mixing performance with high efficiency and high productivity

  • Double computers with double controls, easy operation

  • Excellent environmental protection, dust collection system and anti-noise design.

The Introduction of HZS35 Concrete Batching Plant Components

  • HZS35 Concrete Batching Plant:

  • Adopt combined structure and modular unit, convenient to install and remove.

  • Mixing and aggregate lifting system adopt JS750 double shaft compulsory concrete mixer.

  • Aggregate batching system adopts PLD1200 concrete batcher which offers efficient and accurate measurement.

  • Powder-lot is electronic measured and highly accurate dosing.

  • Water is flow-metering, simple and practical, highly accurate dosing.

  • PLD1200 Batching Machine

  • The series of HZS35 concrete batching plant adopts electronic weighing digital display.

  • It has features if accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation, reasonable design and compact structure and long service life.

  • JS750 Concrete Mixer

  • JS750 concrete mixer has the advantages of reasonable design, compact structure and convenient operation. Stable working and good mixing performance and low energy consumption, low noise and long life wearing parts.

  • Mixing system: motor, belt pulley, gear, mixing drum.

  • Feeding system: Lifting motor, feeding frame, hopper, feeding mouth.

The Technical Parameters of HZS35 Concrete Batching Plant

Model

HZS35


Specification

Unit

Value

Productivity

m3/h

35

Capacity of Mixer

m3

0.75

Mixer Power

kw

18.5

Discharge Height

m

3.8(for customers choice)

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

1.2

Max. Weighing Value of aggregate

kg

2250

Max. Weighing Value of cement

kg

450

Max. Weighing Value of water

kg

300

Max. Weighing Value of additive

kg

75

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capacity

_

Optional

Control Mode

_

Auto/Semi control
