HZS60 Concrete Batching Plant

Description of HZS60 Concrete Batching Plant:

  • HZS60 Concrete Batching Plant has been widely used in the domestic and abroad, as well as earning a perfect reputation in the construction field.

  • HZS series of Concrete Batching Plant, also named concrete mixing plant,which is developed by our company on the basis of adopting the world's sophisticated technologies.

  • This batching plant has been widely used in the domestic and aboard, as well as earning a perfect reputation in the construction field. We have dedicated in manufacturing concrete batch plant for many years.

The Introduction of HZS60 Concrete Batching Plant Components:

  • HZS60 Concrete Batching Plant:

  • Adopts modular structure, easy to install and assembly and convenient to transport.

  • The mixing console adopts JS1000 twin shaft compulsory concrete mixer.

  • Measurement of components and control components are importing from USA, Japan, Germany.

  • Computer control system can keep the accuracy and stable measurement performance.

  • Cement Silo of HZS60 Concrete Batching Plant:

  • Cement silo is suitable for bulk cement and dry fly ash, grain and waterproof.

  • Cement silo is cylinder and supporting structure.

  • Cement silo generally adopts bulk cement conveying concrete truck to delivery the powder into the bin by pneumatic conveying.

The Technical Parameters of HZS60 Concrete Batching Plant

Model

HZS60


Specification

Unit

Value

Productivity

m3/h

60

Capacity of Mixer

m3

1

Mixer Power

kw

37

Discharge Height

m

3.8(for customers choice)

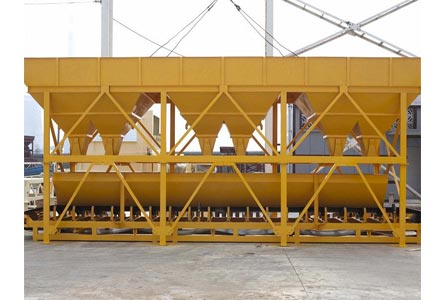

Aggregate Bin

Quantity

3

Aggregate Bin Capacity

m3

1.6

Max. Weighing Value of aggregate

kg

3000

Max. Weighing Value of cement

kg

600

Max. Weighing Value of water

kg

400

Max. Weighing Value of additive

kg

50

Aggregate Measuring Accuracy

%

2

Water Measuring Accuracy

%

1

Cement Measuring Accuracy

%

1

Additive Measuring Accuracy

%

1

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capacity

_

Optional

Control Mode

_

Auto/Semi control
