HZS150 Concrete Batching Plant

Description of HZS150 Concrete Batching Plant :

  • HZS150 concrete batching plant is composed of batching, mixing, electrical control and other parts of the full automatic concrete mixing equipment. It is suitable for medium scale construction, precast factory and commercial concrete production plant.

  • The overall appearance, convenient installation and disassembly, each layer of the packaging side can be opened, which is convenient for maintenance and replacement parts;

  • All materials scale adopts independent measurement, a scale of a table, improves the measurement precision of aggregate lifting belt;

  • Machine adopts hanging type speed reducer, lateral stable operation, strong power and easy maintenance;

  • All the powder in the transportation, metering and delivery process is in a closed state, completely eliminate the dust emission of the parts are made of reliable performance and stable transmission of the transmission mechanism, and will effectively reduce the noise;

  • Mixer and belt machine all adopt environmental protection packaging thus, further reduce dust and noise pollution.

The Features of HZS150 Concrete Batching Plant:

  • Modular design structure, which is easy to install and disassemble

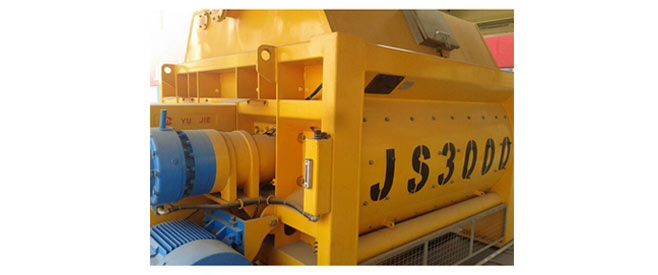

  • With JS3000 twin shaft compulsory concrete mixer, which has the high productivity and good mixing performance.

  • Suitable large size construction projects, eg, bridge, dam, road, school,etc.

The Technical Parameters of HZS150 Concrete Batching Plant:

Model

HZS150


Specification

Unit

Value

Productivity

m3/h

150

Capacity of Mixer

m3

3

Mix Power

kw

110

Discharge Height

m

3.8

Aggregate Bin

Quantity

4

Aggregate Bin Capacity

m3

4.8

Max. Weighing Value of Aggregate

kg

2x4000

Max. Weighing Value of Cement

kg

1800

Max. Weighing Value of Water

kg

800

Max. Weighing Value of Additive

kg

50

Aggregate Measuring Accuracy

%

±2%

Water Measuring Accuracy

%

±1%

Cement Measuring Accuracy

%

±1%

Additive Measuring Accuracy

%

±1%

Cement Silo

_

Optional

Cement Screw Conveyor

_

Optional

Cement Silo Capacity

_

Optional

Control Mode

_

Auto/Semi Control
