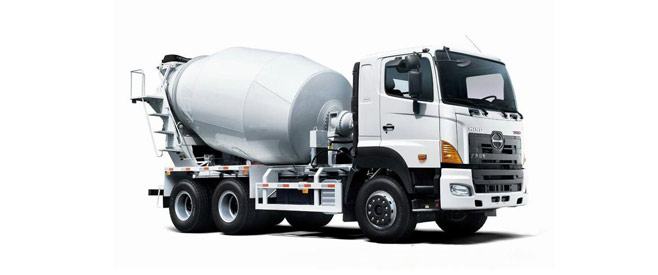

HM6-D Concrete Truck Mixer

HAOMEI serial Concrete Truck Mixer is strong well designed equipment meant for transporting concrete / mortar from concrete batching plant directly to the place where it is to be poured
Effectively delay concrete coagulations, avoid concrete stratification and eduction, and ensures construction quality and speed.
Wide range of application especially for mass concreting works like Construction of Canals, Bridges, Highways, Dams, Multistoried & Industrial Buildings, Factories, and Airports for ready mixed concrete works.
Including many models such as 8m3, 9m3, 10m3, 12m3, 14m3, 16m3, and any tailor-made-for-mixer-truck special chassis both at home and abroad.

High-intensity drum material, featuring better wear-resistance and long service life;
Optimized mixing blades, low material residue;
High-quality parts, reliable running;
Excellent performance and convenient operation;
Imported original hydraulic system.

Model	HM6-D
Specification	Unit	Value
Mixing Capacity	m³	6
Tank Volume	m³	9.96
Feeding Speed	m³/min	≥3
Discharging Speed	m³/min	≥1.5
Residual Ratio of Discharging	%	≤0.5%
Water Supply System		Air pressure
Water Tank Volume	L	260
Overall Dimension	mm	845024963835
Chassis Model		Steyr
Clutch	φ	φ430 Monolithic dry type
Min Ground Clearance	mm	297
Max Speed	km/h	75
Engine Max Output Power	kw	247
Emission Standard		Euro Ⅲ
Rated Load	kgs	12600
Overall Weight	kgs	25000
Wheelbase	mm	3225+1350
